Multiple Disc Spring Applied Brake (MSB)

MSB Product Line

  • Wet Static Torque – 45 to 455 lb-ft
  • Wet Starting Torque – 25 to 252 lb-ft
  • Dry Static Torque – 50 to 506 lb-ft
  • Dry Starting Torque – 38 to 378 lb-ft
  • Three standard frame sizes
  • Magnet Body Dia. – 5.2″ to 9.2″
  • Overall Length – 3″ to 5.9″
  • Bore sizes – 1.4″ to 3.5″
Performance / Mechanical SpecificationsMSB Series - Model Size
520720925
STP File ModelCAD Icon 3DCAD Icon 3DCAD Icon 3D
Torque Rating (Static-Wet)lb-ft45180455
Torque Starting (Wet)lb-ft25100252
Torque Rating (Static-Dry)lb-ft50200506
Torque Starting (Dry)lb-ft38150378
Overall Length (ref)in3.084.165.9
Body Diameterin5.197.169.25
Magnet Body Co-Bore Diameterin2.53.55.0

MSB Operation

This spring applied brake is designed specifically for applications requiring braking when power fails or when the brake will be applied for long periods of time. Spring applied clutches also available. Contact SEPAC Engineering for details. Many options are available.

When current is applied to the brake, the armature is attracted toward the magnet body releasing the discs, allowing them to rotate. When current is cut to the coil, springs push the armature into engagement with the discs stopping the load.

MSB Power-Off

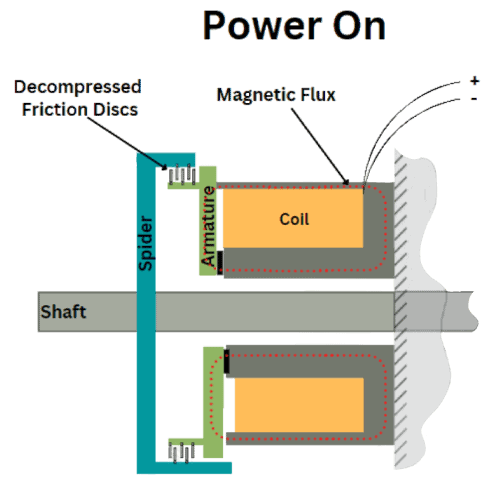

MSB Power-On
