Spring Applied Clutches

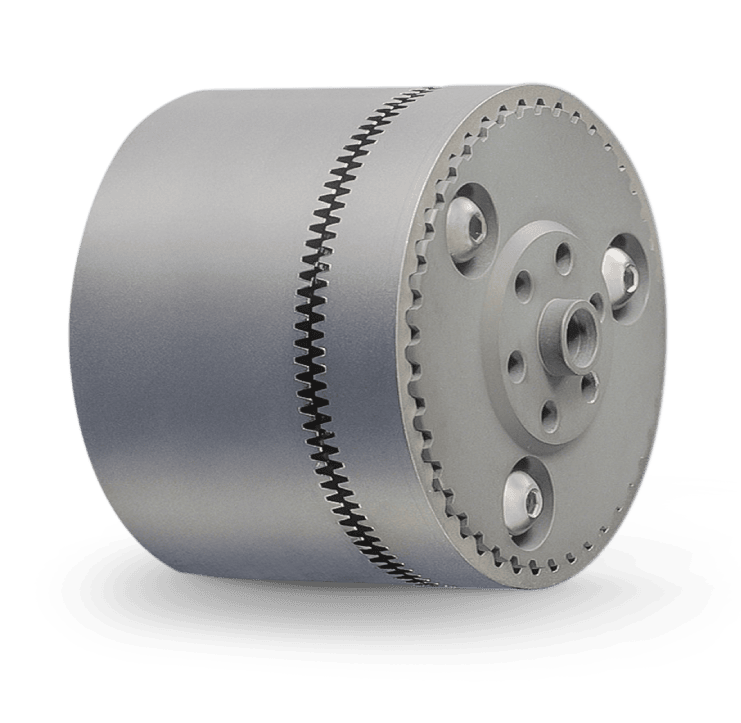

Operation (click to enlarge) SETC Disengaged
Description

This stationary field spring applied tooth clutch is designed to operate both dry and in oil. Bearings used are sealed, permanently lubricated and do not require a grease fitting like some competitive clutches. Many options are available.

Specifications
  • 3 to 10.5” diameter; 2 to 7.5” length
  • Bore sizes from 0.5 to 4.25”
  • Static torque from 20 to 2600 lb-ft
  • 1400 to 3500 RPM max speed
  • Operates both dry and in oil
  • Modified designs and customized assemblies available

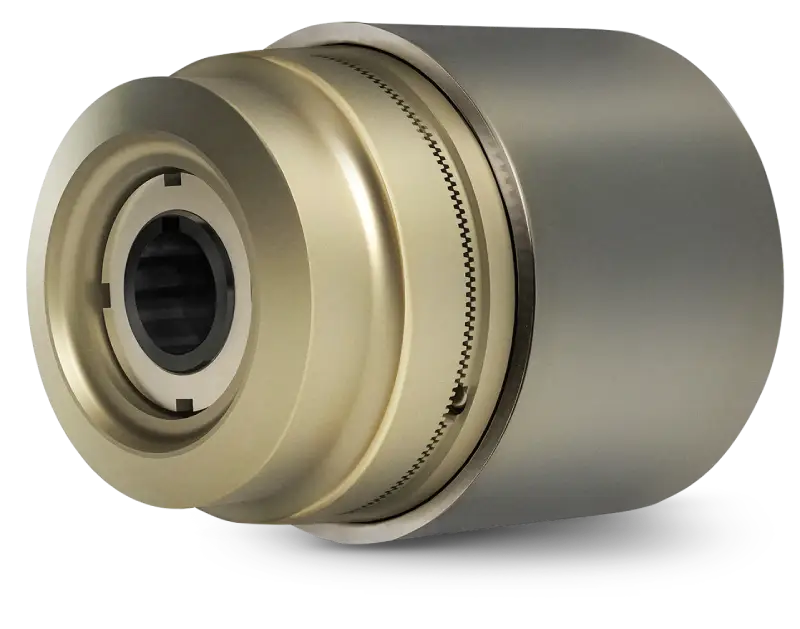

Operation (click to enlarge) SECC Disengaged
Description

Spring Applied Tooth Clutch Couplings integrate an SETC clutch with a factory aligned sleeve and output hub for a prefabricated “mount and run” solution. The SECC design dramatically simplifies application design complexity and reduces installation time.

Specifications
  • 4.5″ to 10.6″ diameter; 3.8″ to 8.6” length
  • Bore sizes from 0.8″ to 2.9″
  • Static torque from 80 to 2600 lb-ft
  • 1400 to 2500 RPM max speed
  • Operates both dry and in oil
  • Modified designs and customized assemblies available
